DESCRIPTION

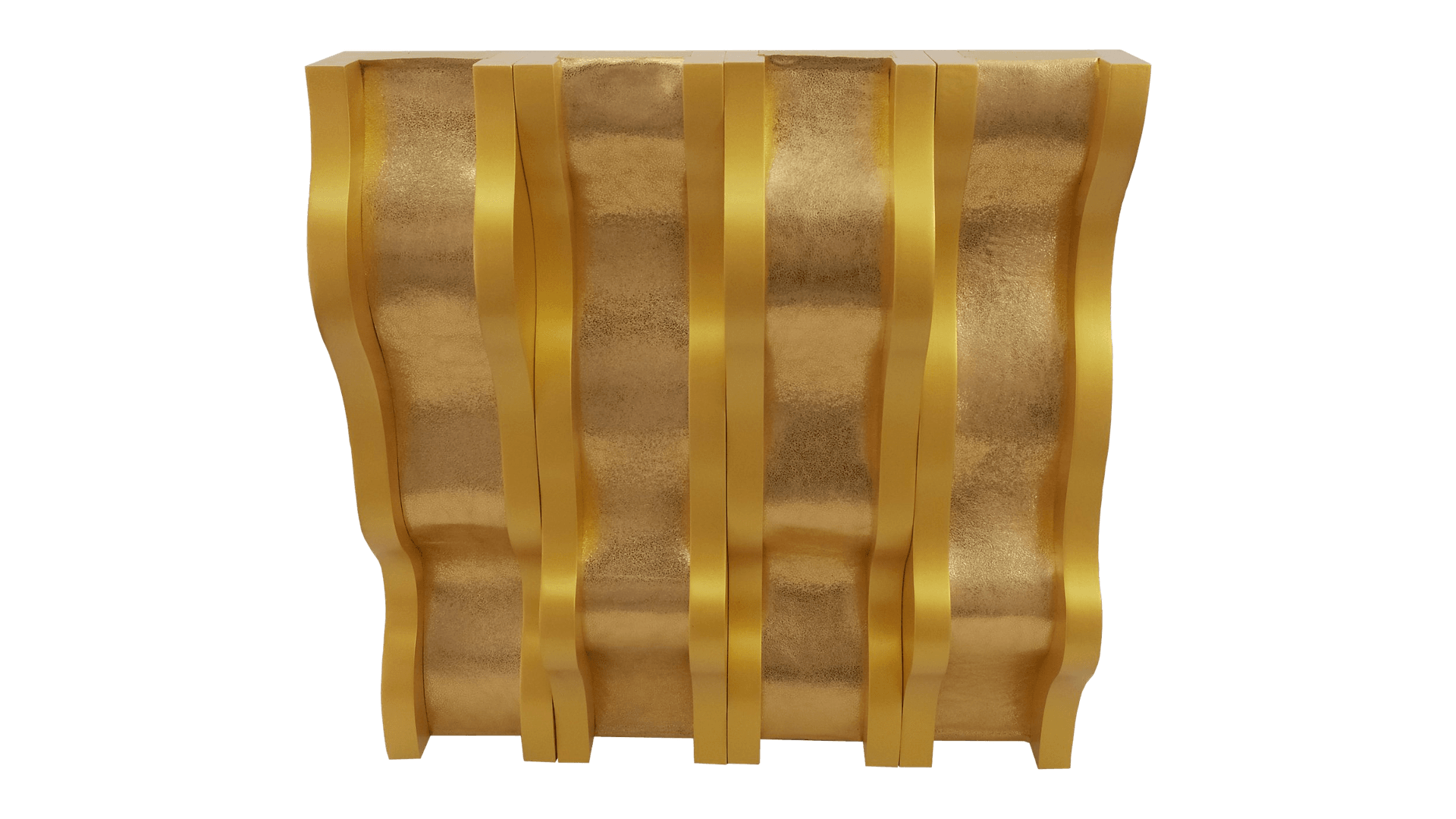

CORKoak is a wooden diffusion acoustic panel resulting from a combination process of oak wood with cork, which is one of the options concerning JOCAVI™'s 2D diffusion panels.

The use of 2D diffuser panels is one of the classic standards in the construction of music rooms, being extremely efficient to control primary reflections and floating echoes, thus improving the balanced sound atmosphere in the room.

Due to the absorption properties of the cork applied to the low reliefs of this piece, it makes the diffusion curve and the absorption curve closer to each other, thus revealing some interesting absorption coefficients.

This panel is made of solid oakwood and cork with a finish of five different colors of natural varnish. The wood and cork’s natural appearance stands out inside the rooms, providing this product a very attractive look, both acoustically and aesthetically.

FEATURES

Manufactured with
Self-sustainable oak wood and cork
Average diffusion
0.59/m2 [>500Hz; <5kHz]
NRC
0.30/m2 [>250Hz; <10kHz]
Finished with
Ecological varnishes
Recyclable
100% recyclable
Application
On wall and ceilings
Installation
Accessories included
Fire resistance
B-s1, d0 (Similar to old M3)
Package
2 units

TECHNICAL DRAWINGS

PRODUCT DIMENSIONS

Model Height Width Depth Weight
CCK060 60 cm (23,6") 60 cm (23,6") 12.75 cm (5,01") 14 kg (30 lbs 14 oz)
CCK120 120 cm (47,2") 60 cm (23,6") 12.75 cm (5,01") 28 kg (61 lbs 12 oz)
CCK180 180 cm (70,9") 60 cm (23,6") 12.75 cm (5,01") 42 kg (92 lbs 10 oz)

ABSORPTION COEFFICIENT
