DESCRIPTION

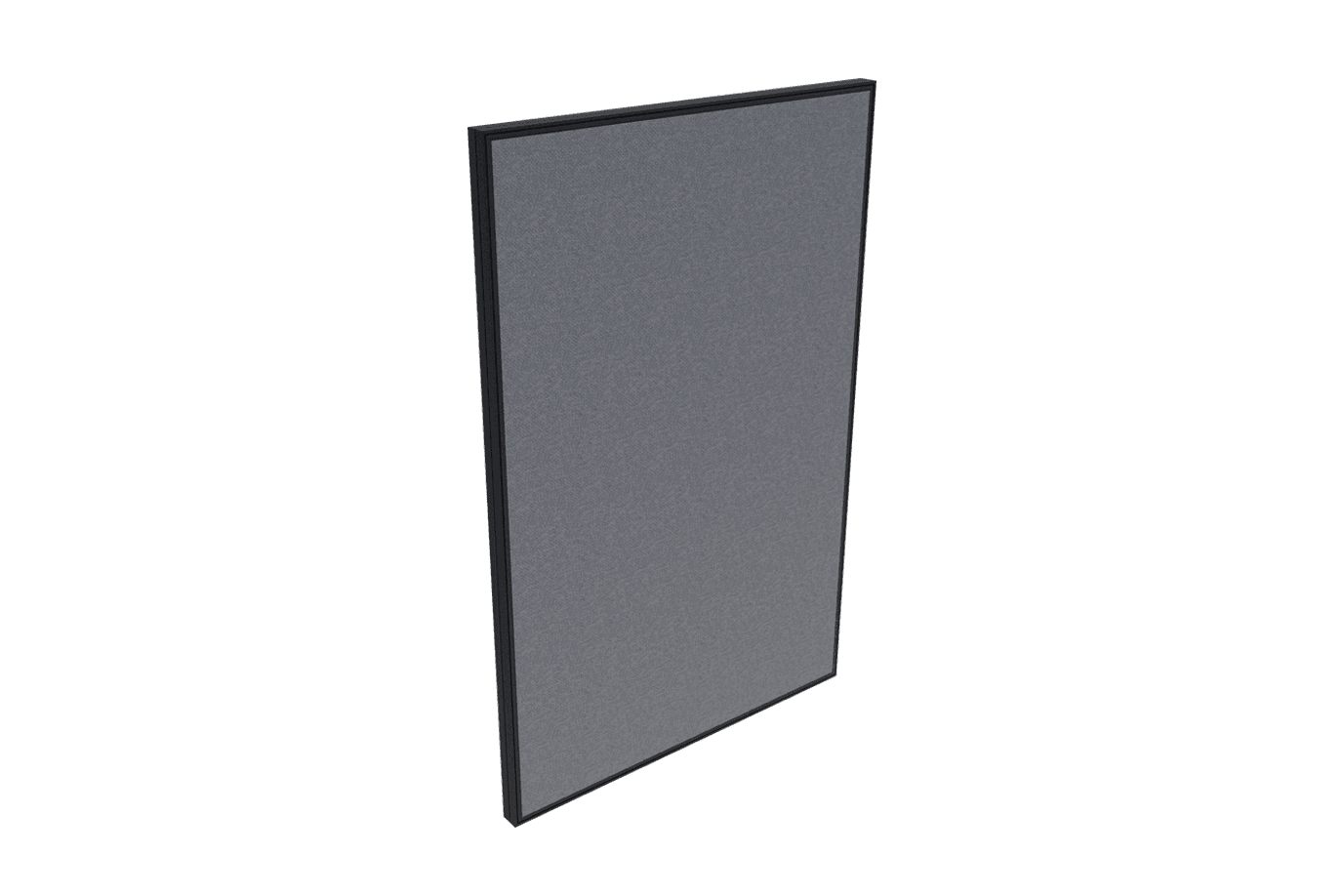

ATP™ BassWane is a light and practical version of a low-frequency absorbent, designed for large dimensions halls to control the bass frequencies. Especially when the quantity of the products is high, the price/performance relation is a priority concern. This panel is an economical version panel which consists of a PVC/GRP profile with a frontal reticulated foam membrane covered with fabric finishing. Mounting the frame profile to a surface creates a resonance box sealed through a viscoelastic seal on the back o the PVC/GRP frame. On the back of the frame glued to the surface (wall or ceiling) an absorbent acoustic foam layer is applied. This is an effective method of having low-frequency absorbers in large numbers on a small budget.

FEATURES

Raw materials
PVC/GRP profile + recticulated foam + regular foam + fabric.
Tuned LF
Tuned to 250Hz
Peak Frequency Coefficient
0.96 at 500Hz
LF average absorption
0.78/m2 [>50Hz;<1000Hz]
Fire-resistance - Acoustic Foam:
Euroclass B-s3, d1 (similar to old M1)
Flame-resistance - Recticulated Foam:
Euroclass B (similar to old M1 France, B1 Class (DIN 4102), GB class1, V0/HF1(UL94). Meets all fire policies required for the Building & Construction. No volatile mineral fibres.
Recyclable
Made of recyclable materials
Application
Application on ceilings and walls. Mounting accessories included
Installation
Very easy to install

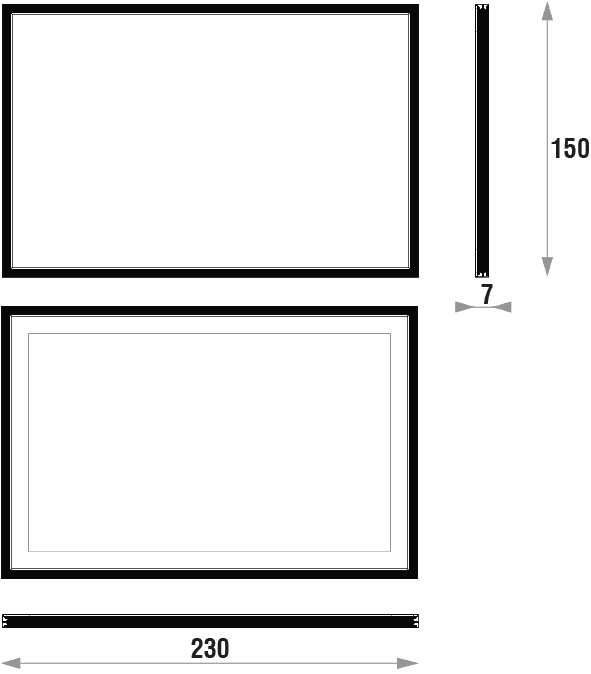

TECHNICAL DRAWINGS

PRODUCT DIMENSIONS

Model Height Width Depth Weight
LF32 230 cm (90,55") 150 cm (59,06") 7,2 cm (2,83") 13 kg (28,66 lbs)

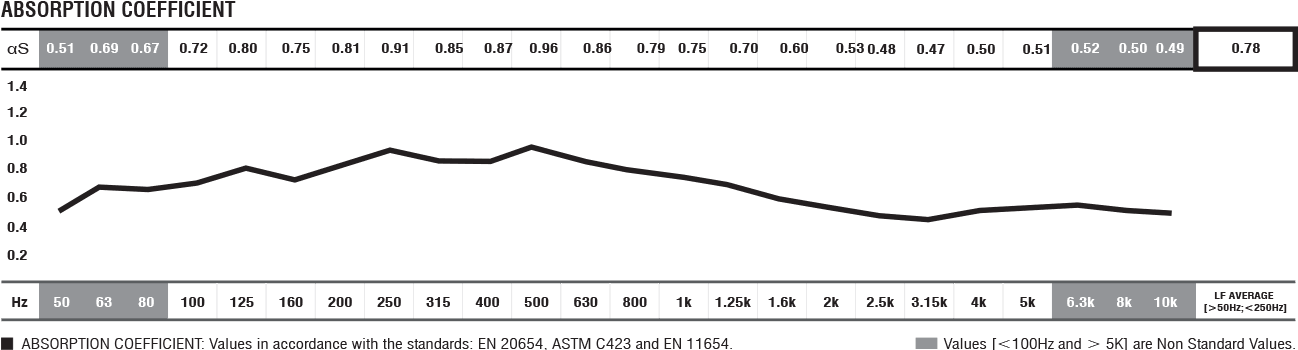

ABSORPTION COEFFICIENT
