DESCRIPTION

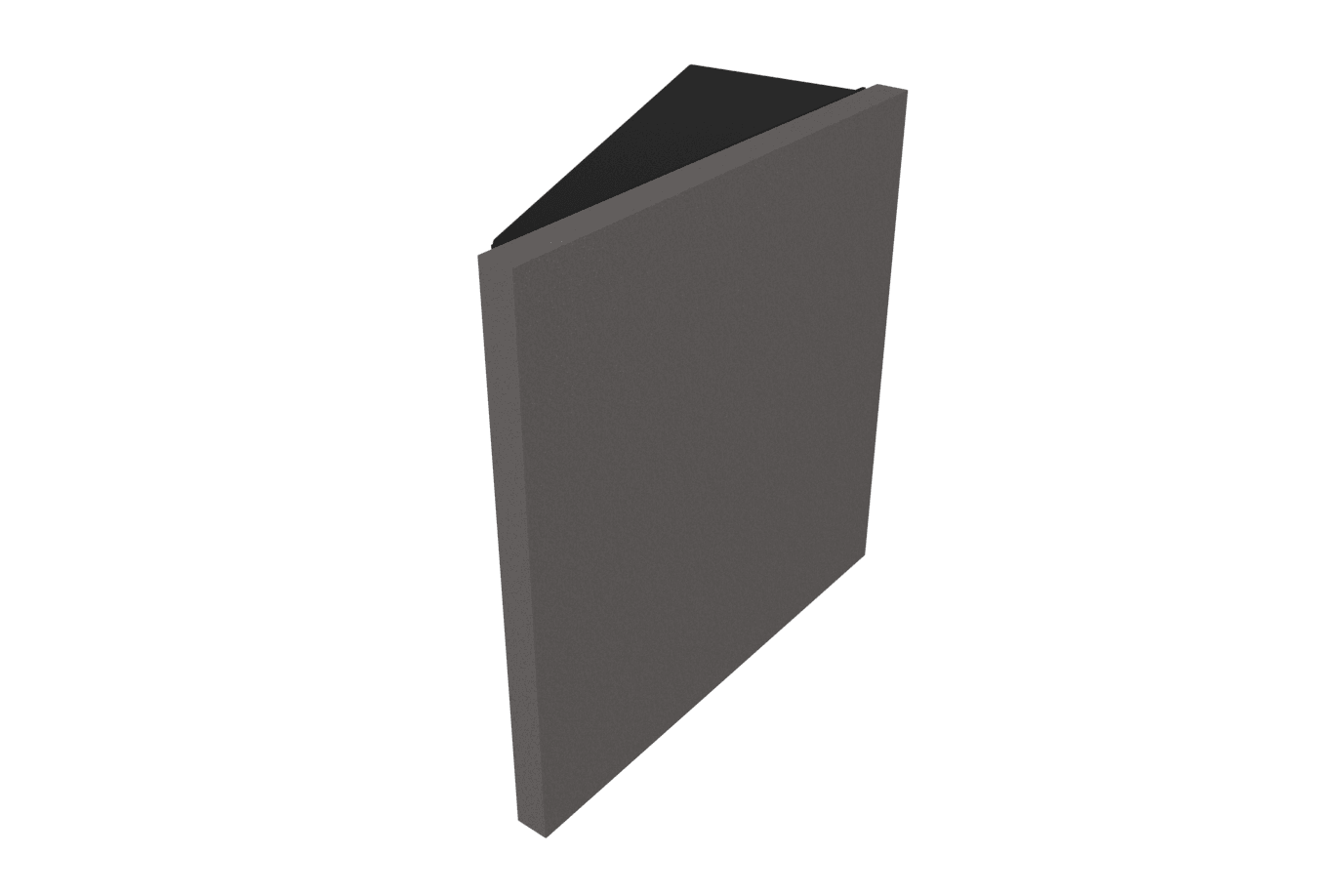

The ATP™ CT BASS™ is a low frequency membrane absorbent panel tuned at 125 Hz and designed to be used in walls and ceilings corners. It is developed to fine tune the modal distribution of small rooms such as studio control rooms and home theatres.
This model can be combined with Basmel SC, in order to enhance mid-lows absorption. CT BASS is a low frequency membrane absorbent panel designed to fit 90° corners, tuned to 125hz.
Together these panels extend the range of the absorbed frequencies to the next harmonic frequency. This combination is one of the best ways to treat low-frequency problems in small and medium-sized rooms.
FEATURES
Tuned to
Tuned to 125Hz
LF average absorption
0.82/m2 [>50Hz; <250Hz]
Box
Box made of HIPS
Front membrane
Front membrane in acoustic foam with fabric covered finishing
HIPS Fire-resistance
VO - UL94 standards (similar to M2)
Flame resistance
MELAMINE FOAM - Euroclass B-s1,d0 (similar to old M1 France, Germany B1,GB class1, USA V0/HF1)
Flame resistance
Regular Foam - Euroclass B-s3, d1 (similar to old M1)
Application
On ceiling and wall corners
Package
2 units
Installation
Very easy to install
AVAILABLE FINISHINGS
HIPS Colour
Similar to RAL 7042
Black
Fabric colours
Similar to RAL 1011
Beige
Similar to RAL 9005
Black
Similar to RAL 5013
Blue
Similar to RAL 8019
Brown
Similar to RAL 6028
Green
Similar to RAL 7015
Grey
Similar to RAL 5010
Light blue
Similar to RAL 7001
Light grey
Similar to RAL 2001
Orange
Similar to RAL 4007
Purple
Similar to RAL 3003
Red
Similar to RAL 9003
White
Similar to RAL 1003
Yellow
TECHNICAL DRAWINGS
PRODUCT DIMENSIONS
| Model | Height | Width | Depth | Weight | |
|---|---|---|---|---|---|
|
|
CTB060 | 60 cm (23,6") | 57.64 cm (22,69") | 25,3 cm (9,96") | 3.8 kg (8 lbs 7 oz) |
ABSORPTION COEFFICIENT
PRODUCT DATA
