DESCRIPTION

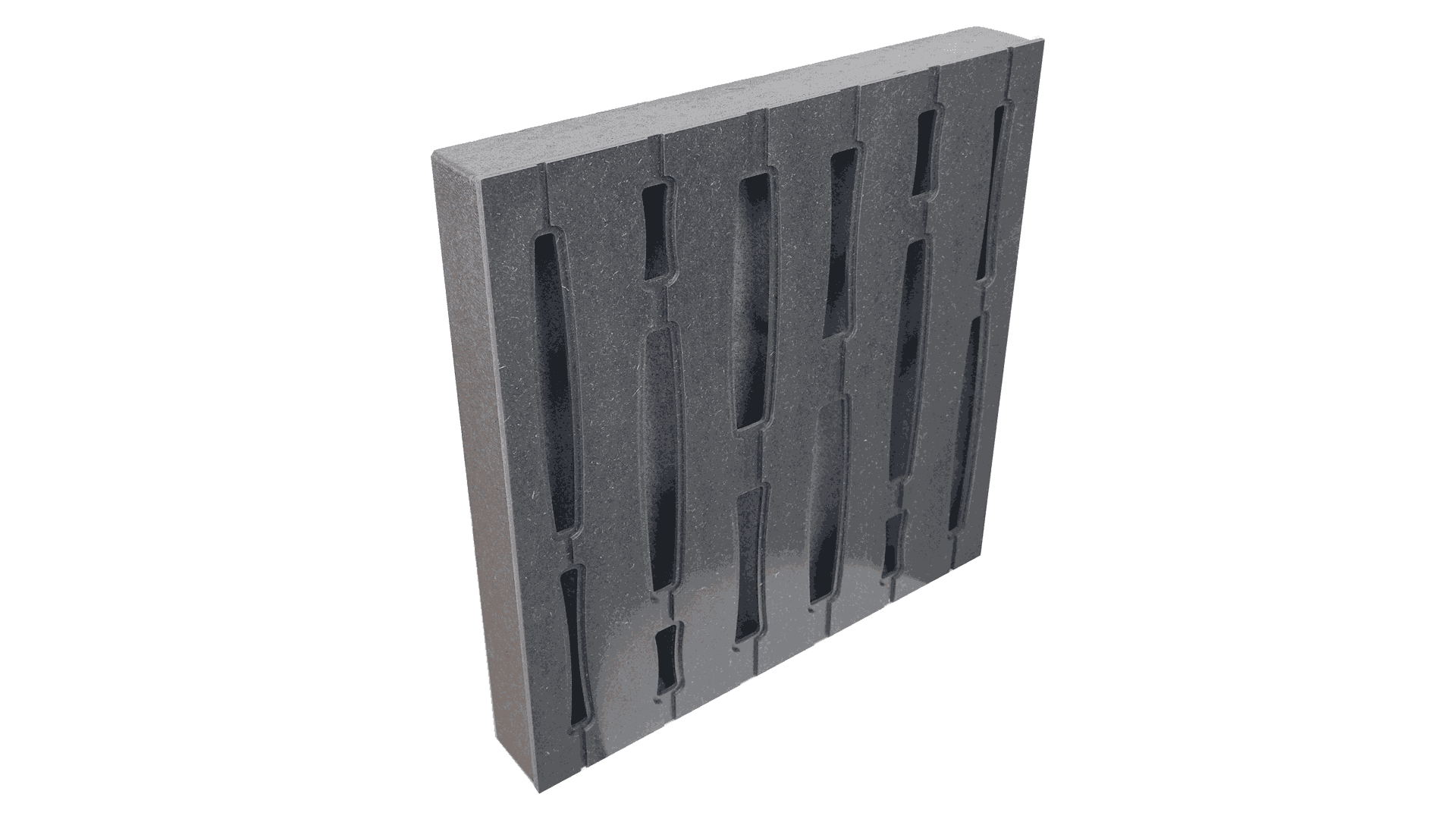

MidCore acoustic absorber panel, was designed to provide targeted absorption in the low–mid frequency range, with peak efficiency between 420 Hz and 800 Hz.

The front surface features a pattern of small openings integrated into a resonant chamber structure. This configuration creates an internal acoustic labyrinth that effectively dissipates mid-frequency energy, helping to control reflections and improve overall acoustic balance in the room.

The panel can be combined with porous absorbers or other acoustic treatment elements, extending the effective absorption range and enabling a more comprehensive acoustic solution.

Suitable for professional studios, home studios, listening rooms, and other environments where sound quality is important, this panel contributes to improved clarity, definition, and tonal accuracy.

The unit features an attractive wood finish, available in several colour options, allowing it to integrate naturally into a variety of interior designs while maintaining a professional acoustic performance.

FEATURES

Manufactured with
Wood veneer faced (or engineered coloured fibre) board on a HD EPS box.
NRC
0.76/m2 (Hole) [>100Hz;<5KHz], 0.75/m2 (Slit) [>100Hz;<5KHz]
Fire-resistance
Wood venner - B-s2, d0 (Similar to old M1)
Fire-resistance
EPS - Euroclass B-s3,d1 (similar to old M1)
Made of
recyclable materials
Finishings
Several finishing options available
EPS Box
Box available in EPS raw black
Installation
Very easy to install.

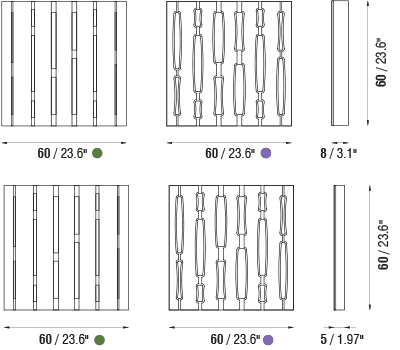

TECHNICAL DRAWINGS

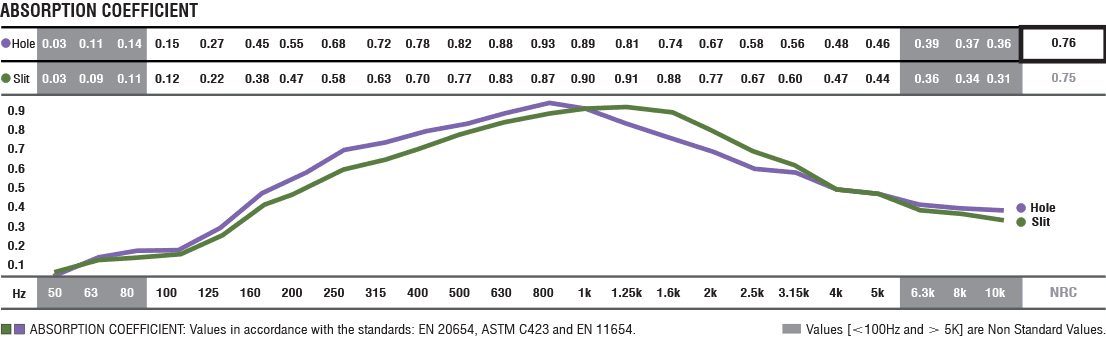

ABSORPTION COEFFICIENT
